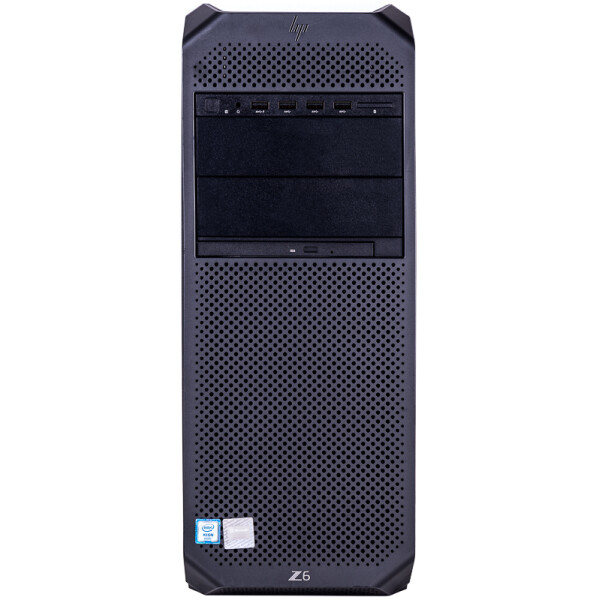

HP Z6 G4 Workstation 2x18-Core Intel Xeon Gold 6254, max. 4.00 GHz, 192GB DDR4, 512GB M.2 SSD, Nvidia Quadro RTX 6000 (24GB), WIN 11 Pro

SKU: F6853
  • GTIN: 0191628429561
ISV Certification for Autodesk AutoCAD - Autodesk 3ds Max - Allplan - Fusion 360 - Houdini - Autodesk Inventor - Autodesk Maya - Siemens NX - Autodesk Revit - Solidedge - Solidworks - Vectorworks - max resolution 7680x4320 - 3 x DisplayPort 1.4, 1 x Virtual Link - 4 x USB 3.1 Front - ECC - Windows 11 ready
from
3.699,90 €
Final price* , plus shipping costs
  • 1 In stock
  • Delivery time: 1 - 2 Workdays  (DE - int. shipments may differ)
Configure
  • 1 In stock
  • Delivery time: 1 - 2 Workdays  (DE - int. shipments may differ)

Configure

Bootable USB Stick

optional
Windows installation media for the case of need
With the bootable USB stick prepared by us, you always have a recovery medium tailored to your device to hand.
+49,90 €

SSD M.2 NVMe

Please select a maximum of 1.
An alternative M.2 NVMe SSD can be selected as an option. Note: For systems with only one M.2 slot, the existing SSD is replaced by the selected variant. The installation of multiple SSDs is only possible after individual consultation, as the number of available M.2 slots depends on the model.
+99,90 € Quantity: 1
+119,90 € Quantity: 1
+159,90 € Quantity: 1
+159,90 € Quantity: 1
+189,90 € Quantity: 1
+249,90 € Quantity: 1
+359,90 € Quantity: 1
+159,90 € Quantity: 1
+229,90 € Quantity: 1
+499,90 € Quantity: 1
0,00 € Quantity: 1

Case front

optional
Extensions for the housing front
The HP card reader, installed in a 5.25" slot on the front of your workstation, supports the following storage media: SD / MMC+, miniSD, MS PRO / MS PRO Duo, Micro SD, xD and CompactFlash I / II. In addition, the card reader includes a USB 2.0 slot. HP SN: 698877-001
+39,90 € Quantity: 1

Expansion cards

optional
Have your Workstation equipped with PCI Express expansion cards
Enable ultra-fast backup, editing, and file sharing, and significantly reduce the time to complete key tasks on select HP Z Workstations with the HP Thunderbolt 3 PCIe 2-port I/O Card driven by Thunderbolt 3 technology. HP SN: 3UU05AA
+189,90 € Quantity: 1
The HP 561T dual-port 10 GbE Ethernet adapter uses a latest generation Intel Ethernet Controller X540 with 10 GbE. This adapter supports high-performance networking features such as VLAN tagging, low latency interrupts, TCP and UDP checksum offloading, MSI-X, NIC teaming (bonding), receive side scaling (RSS), WOL, jumbo frames, PXE boot, and virtualization features, and is ready for VMDq and SR-IOV. HP SN: 716591-B21
+249,90 € Quantity: 1

HP Frontpanel

optional
HP Premium Frontpanel Upgrade
With the HP Premium Front I/O Card, you can quickly and easily upgrade the standard front I/O ports on your HP Z4 G4, Z6 G4, or Z8 G4 workstation from 4 x USB 3.1 Gen 1 Type A to 2 x USB 3.1 Gen 2 Type-C with higher bandwidth for compatibility with modern peripherals and 2 x USB 3.1 Gen 1 Type A. HP SN: 1XM32AA
+99,90 € Quantity: 1

Display Adapter

Please select a maximum of 3.

Please note that some workstations may require adapter cables for your monitors. For example, from miniDisplayport to Displayport or from Displayport to HDMI. These adapters are NOT included with the workstation as standard.

With the Displayport to DVI adapter, monitors with a DVI input can be easily connected to your workstation with a Displayport output. An additional DVI cable is required for the connection between adapter and monitor and is not included here.
+16,90 €
With the Displayport to HDMI adapter, monitors with a HDMI input can be easily connected to your workstation with a Displayport output. An additional HDMI cable is required for the connection between adapter and monitor and is not included here.
+16,90 €
With the Displayport to VGA adapter, monitors with a VGA input can be easily connected to your workstation with a Displayport output. An additional VGA cable is required for the connection between adapter and monitor and is not included here.
+16,90 €
With the mDP to Displayport adapter, monitors with a Displayport input can be easily connected to your workstation with a mini-Displayport output. A regular Displayport cable is also required for the connection between the adapter and monitor and is not included.
+16,90 € Quantity: 1
0,00 € Quantity: 1

Memory

optional
Optionally, have additional RAM installed. Existing RAM modules may be replaced in order to achieve the desired total size.
+159,90 € Quantity: 1

SSD 2.5" SATA

Please select a maximum of 2.
Optionally select an additional SATA SSD for your project data. If you require more than 2, please contact us in advance so that we can check whether installation in your desired system is possible.
We install an additional new SSD from Samsung - for example, for fast access to your project data. A necessary adapter from 3.5" to 2.5" is already included in the price.
+59,90 € Quantity: 1
We install an additional new SSD from Samsung - for example, for fast access to your project data. A necessary adapter from 3.5" to 2.5" is already included in the price.
+119,90 € Quantity: 1
We install an additional new SSD from Samsung - for example, for fast access to your project data. A necessary adapter from 3.5" to 2.5" is already included in the price.
+199,90 € Quantity: 1
We install an additional new SSD from Samsung - for example, for fast access to your project data. A necessary adapter from 3.5" to 2.5" is already included in the price.
+349,90 € Quantity: 1

Keyboard and mouse

optional
Additional input devices, e.g. specially developed for CAD applications
+9,90 € Quantity: 1
+9,90 € Quantity: 1
+149,90 € Quantity: 1
+179,90 € Quantity: 1
+89,90 € Quantity: 1
+339,90 € Quantity: 1
+99,90 € Quantity: 1
+119,90 € Quantity: 1
+39,90 € Quantity: 1
+29,90 € Quantity: 1

Windows Updates

optional
We install all windows updates at the time of your order
We install all recommended windows updates that are available at the time of your order.
+19,90 € Quantity: 1
We install the latest BIOS update that is available at the time of your order.
+19,90 € Quantity: 1

Multiple Operating Systems

Please select a maximum of 1.
Multiple operating systems are possible - for example as a dual boot or via a virtual machine (e.g. VirtualBox). Please specify the desired Linux distribution or Windows version when ordering.
We install Windows 10 Pro as the base system and set up a virtualized Linux distribution of your choice via VirtualBox. Parallel work in both systems is thus possible - however, the virtualized Linux only gets limited access to the hardware resources of the device.
+99,90 € Quantity: 1
We install a Linux distribution of your choice as the base system and set up a virtualized Windows 10 Pro via VirtualBox. Parallel working in both systems is thus possible - however, the virtualized Windows 10 Pro only gets limited access to the hardware resources of the device.
+99,90 € Quantity: 1
We install a Linux distribution and a Windows 10 Pro as DualBoot. When you start the device, you can select your desired system for booting via the GRUB boot loader. The system to be started has access to the full performance of the machine but parallel work in both systems is not possible with a DualBoot installation.
+189,90 € Quantity: 1
We install Windows 11 Pro as the base system and set up a virtualized Linux distribution of your choice via VirtualBox. Parallel work in both systems is thus possible - however, the virtualized Linux only gets limited access to the hardware resources of the device.
+99,90 € Quantity: 1
We install a Linux distribution of your choice as the base system and set up a virtualized Windows 11 Pro via VirtualBox. Parallel working in both systems is thus possible - however, the virtualized Windows 11 Pro only gets limited access to the hardware resources of the device.
+99,90 € Quantity: 1
We install a Linux distribution and a Windows 11 Pro as DualBoot. When you start the device, you can select your desired system for booting via the GRUB boot loader. The system to be started has access to the full performance of the machine but parallel work in both systems is not possible with a DualBoot installation.
+189,90 € Quantity: 1
0,00 € Quantity: 1

Software packages

Please select a maximum of 1.
Additional software
Unlike the Home & Student versions, Microsoft Office 2024 Home & Business includes Microsoft Word and Microsoft Excel, as well as the popular Microsoft Outlook. You will receive a new, undeployed full version of Microsoft Office 2024 without a subscription model, which can be used indefinitely. License for 1 user.
+299,90 € Quantity: 1

Your configuration

Description

nVidia Quadro P2000 (NEU) 5 GB GDDR5, 4 x DisplayPort 1.4, max Auflösung 5120x2880 @ 60Hz, Cuda Cores 1024 Open GL 4.5, DirectX 12, Rechenleistung 6.1

Unit type: HP Workstation - HP Z6 G4 Ports:

Front:
1 x headset connector
4 x USB 3.1 (1 charging)
Rear:
6 x USB 3.1 Gen 1
2 x RJ-45 (1 GbE)
1 x audio-in
1 x audio-out
1 x PS/2 mouse port
1 x PS/2 keyboard port
1 x serial
State: very good - refurbished DIE/SCSI/RAID-Controller: MicroSemi SAS Controller (Smart Host Bus Adapter)
Processor: 2 x Intel Xeon Gold 18-Core 6254, Basistakt 3.10 GHz max. 4.00 GHz, 18 Kerne, 36 Threads, 24.75 MB L3 Cache Operating system:

Windows 11 Pro 64BIT, OEM, installed and activated -

Version 25H2

Memory:

192 GB RAM, 6 x32 GB, 2933 MHz, DDR4 , ECC max. 768 GB

   optimized for CAD applications
Hard disk: 512 GB M.2 NVMe SSD (refurbished)
Devices: no optical drivw Driver: Link
Graphics: Nvidia Quadro RTX A5000, (24GB), GDDR6, 4 x Display Port 1.4, max. resolution7680 x 4320, Cuda Cores 8192, OpenGL 4.5, DirectX12, Passmark 22.776, memory bandwidth 768GB/s Manual: Link
Sound: Realtek HD ALC221 Audio Dimensions/weight: 16,9 x 46,5 x 44,5 cm
from 13.1 kg
Network: 10/100/1000 Gigabit Ethernet
Power adapter: 1000 Watt 90% efficient, wide-ranging, active PFC
Expansion slots
total:		 3 x PCIe x4
1 x PCIe x8
2 x PCIe x16
2 x M.2 PCIe x4
Item delivered: HP Z6 G4 Workstation, 2 x Intel Xeon Gold 18-Core 6254, base frequenz 3.10 GHz, 192 GB RAM, 512 GB M.2 SSD, Nvidia Quadro RTX A5000, Windows 11 Pro OEM



Buy a refurbished HP Z6 G4 professional workstation for your CAD Application

Professional users are extremely reliant on perfectly performing computers with the according hardware capacities. Engineers using CAD or numeric simulation tools, architects designing complex structures or graphic designers creating and editing pictures or videos: Strong and reliable components save time, nerves, money and give the right impression with current or potential customers. Unfortunately, this hardware can be unreasonably expensive. We from Uli Ludwig Computer have the solution by offering you refurbished hardware in very good condition to reasonable prices.

Just like the here offered HP Z6 G4, which is equipped with high-end components. Heart of the system are two Intel Xeon Gold  6254 processor with 22 cores, 44 threads, 24.25 MB SmartCache and a processor base frequency of 3.10 GHz. The processor is flanked by 192 GB of DDR4 RAM memory that can be increased to up to 768 GB on 12 slots if necessary. In order for graphical applications to run smoothly, the Z6 G4 workstation has installed an Nvidia Quadro RTX A5000 with 24 GB memory. Also built in is a 512 GB M.2 NVMe SSD for extremely fast reaction. All these components are placed into a space saving minitower.

Characteristics

Product safety information
Manufacturer information:
HP Deutschland GmbH
Herrenberger Straße 140
Baden-Württemberg
Böblingen, Deutschland, 71034
firmen.kunden@hp.com
https://www.hp.com/de
Item information Value
Application: CAD Workstation
Hard Disk Type: M.2 NVMe SSD
Manufacturer: HP
ISV Certification: CreoArnoldALLPLANV-Ray3ds MaxKeyShotAutoCADSiemens NXLumionInventorFusion 360RedshiftSolidWorksHoudiniANSYSMayaAVIDRevitBentleySolid EdgeCATIA 3DEXPERIENCEVectorworksArchiCADDaVinci Resolve
Memory Type: DDR4
Memory Error Correction: ECC
Max. Hard Drive Count: 8
M.2 NVMe SSD Capacity: 2
Condition: refurbished- Top condition
SSD Capacity: ab 512 GB
Memory Capacity: 192 GB
CPU Type: Intel Xeon 2 x18-Core
CPU Model: Intel Xeon Gold 6254
GPU: NVIDIA Quadro RTX A5000 (24GB)
