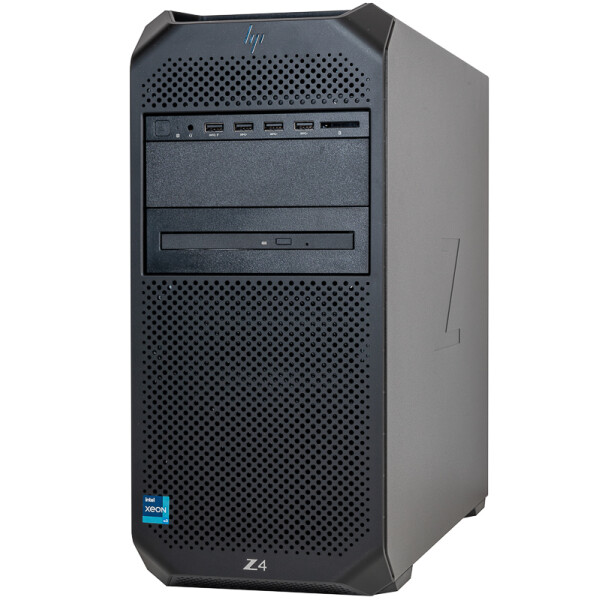

HP Z4 G5 Workstation, Intel Xeon 8-Core W3-2435, max. 4.50GHz, 64GB DDR5, 512GB M.2 SSD, Nvidia RTX 4000 ADA (20GB), WIN 11 Pro

SKU: F6752
  • GTIN: 197498281346
HP HW Maintenance Onsite Support till 14.12.2027 - ISV Certification for Autodesk AutoCAD - Autodesk 3ds Max - Allplan - Fusion 360 - Houdini - Autodesk Inventor - Autodesk Maya - Siemens NX - Autodesk Revit - Solidedge - Solidworks - Vectorworks - DaVinci Rsolve - Autodesk Arnold - KeyShot - V-Ray - Maxon Redshift - Lumion - max. resolution of the graphic card 7680x4320 - 4 x Front USB 3.1 – ECC RAM
from
3.899,90 €
Final price* , plus shipping costs
  • 1 In stock
  • Delivery time: Germany - Express overnight  (DE - int. shipments may differ)
Configure
  • 1 In stock
  • Delivery time: Germany - Express overnight  (DE - int. shipments may differ)

Configure

Bootable USB Stick

optional
Windows installation media for the case of need
With the bootable USB stick prepared by us, you always have a recovery medium tailored to your device to hand.
+69,90 €

SSD M.2 NVMe

Please select a maximum of 1.
An alternative M.2 NVMe SSD can be selected as an option. Note: For systems with only one M.2 slot, the existing SSD is replaced by the selected variant. The installation of multiple SSDs is only possible after individual consultation, as the number of available M.2 slots depends on the model.
+99,90 € Quantity: 1
+129,90 € Quantity: 1
+219,90 € Quantity: 1
+329,90 € Quantity: 1
+619,90 € Quantity: 1
+219,90 € Quantity: 1
+359,90 € Quantity: 1
+669,90 € Quantity: 1
0,00 € Quantity: 1

Expansion cards

optional
Have your Workstation equipped with PCI Express expansion cards
The HP 561T dual-port 10 GbE Ethernet adapter uses a latest generation Intel Ethernet Controller X540 with 10 GbE. This adapter supports high-performance networking features such as VLAN tagging, low latency interrupts, TCP and UDP checksum offloading, MSI-X, NIC teaming (bonding), receive side scaling (RSS), WOL, jumbo frames, PXE boot, and virtualization features, and is ready for VMDq and SR-IOV. HP SN: 716591-B21
+299,90 € Quantity: 1

Display Adapter

Please select a maximum of 3.

Please note that some workstations may require adapter cables for your monitors. For example, from miniDisplayport to Displayport or from Displayport to HDMI. These adapters are NOT included with the workstation as standard.

With the Displayport to DVI adapter, monitors with a DVI input can be easily connected to your workstation with a Displayport output. An additional DVI cable is required for the connection between adapter and monitor and is not included here.
+16,90 €
With the Displayport to HDMI adapter, monitors with a HDMI input can be easily connected to your workstation with a Displayport output. An additional HDMI cable is required for the connection between adapter and monitor and is not included here.
+16,90 €
With the Displayport to VGA adapter, monitors with a VGA input can be easily connected to your workstation with a Displayport output. An additional VGA cable is required for the connection between adapter and monitor and is not included here.
+16,90 €
With the mDP to Displayport adapter, monitors with a Displayport input can be easily connected to your workstation with a mini-Displayport output. A regular Displayport cable is also required for the connection between the adapter and monitor and is not included.
+16,90 € Quantity: 1
0,00 € Quantity: 1

Keyboard and mouse

optional
Additional input devices, e.g. specially developed for CAD applications
+9,90 € Quantity: 1
+9,90 € Quantity: 1
+149,90 € Quantity: 1
+179,90 € Quantity: 1
+119,90 € Quantity: 1
+339,90 € Quantity: 1
+99,90 € Quantity: 1
+149,90 € Quantity: 1
+39,90 € Quantity: 1
+29,90 € Quantity: 1

Windows Updates

optional
We install all windows updates at the time of your order
We install all recommended windows updates that are available at the time of your order.
+19,90 € Quantity: 1
We install the latest BIOS update that is available at the time of your order.
+19,90 € Quantity: 1

Multiple Operating Systems

Please select a maximum of 1.
Multiple operating systems are possible - for example as a dual boot or via a virtual machine (e.g. VirtualBox). Please specify the desired Linux distribution or Windows version when ordering.
We install Windows 10 Pro as the base system and set up a virtualized Linux distribution of your choice via VirtualBox. Parallel work in both systems is thus possible - however, the virtualized Linux only gets limited access to the hardware resources of the device.
+99,90 € Quantity: 1
We install a Linux distribution of your choice as the base system and set up a virtualized Windows 10 Pro via VirtualBox. Parallel working in both systems is thus possible - however, the virtualized Windows 10 Pro only gets limited access to the hardware resources of the device.
+99,90 € Quantity: 1
We install a Linux distribution and a Windows 10 Pro as DualBoot. When you start the device, you can select your desired system for booting via the GRUB boot loader. The system to be started has access to the full performance of the machine but parallel work in both systems is not possible with a DualBoot installation.
+189,90 € Quantity: 1
We install Windows 11 Pro as the base system and set up a virtualized Linux distribution of your choice via VirtualBox. Parallel work in both systems is thus possible - however, the virtualized Linux only gets limited access to the hardware resources of the device.
+99,90 € Quantity: 1
We install a Linux distribution of your choice as the base system and set up a virtualized Windows 11 Pro via VirtualBox. Parallel working in both systems is thus possible - however, the virtualized Windows 11 Pro only gets limited access to the hardware resources of the device.
+99,90 € Quantity: 1
We install a Linux distribution and a Windows 11 Pro as DualBoot. When you start the device, you can select your desired system for booting via the GRUB boot loader. The system to be started has access to the full performance of the machine but parallel work in both systems is not possible with a DualBoot installation.
+189,90 € Quantity: 1
0,00 € Quantity: 1

Software packages

Please select a maximum of 1.
Additional software
Unlike the Home & Student versions, Microsoft Office 2024 Home & Business includes Microsoft Word and Microsoft Excel, as well as the popular Microsoft Outlook. You will receive a new, undeployed full version of Microsoft Office 2024 without a subscription model, which can be used indefinitely. License for 1 user.
+299,90 € Quantity: 1

Your configuration

Description

Unit type:

Workstation HP Z4 G5

HP modell-nr.: 5E8E1EA#ABD



 Ports: Front (Entry version):
4 x USB Type-A 5Gbps signaling rate
1 x headphone/microphone combo
Rear:
6 x SuperSpeed USB Type-A 5 Gbit/s signaling rate
1 x RJ-45
1 x Audio-In/Out
State:

very good - refresh

HP HW Maintenance Onsite Support till 14.12.2027

 DIE/SCSI/RAID-Controller: Integrated SATA 6,0 Gbit/s
Integrated RAID 0, 1 for SATA-drives
Processor: Intel Xeon 8-Core W3-2435, 3.10 GHz max. 4.50 GHz, 8 Kerne, 16 Threads, 22.5 MB Intel Smart Cache Operating system:

Windows 11 Pro 64BIT, OEM, installed and activated

Version 25H2

optimized for CAD applications
Memory: 64 GB RAM, 2x32GB, DDR5 4800MHz, ECC, max. 512 GB, 8 RAM slts
Hard disk: 512 GB M.2 NVMe SSD (refurbished)
Devices: no optical device Driver: Link
Graphics:  Nvidia Quadro RTX 4000 ADA (20GB), GDDR6X, max. Resolution 7680 x 4320,,4 x Displayport 1.4a, Cuda Cores 2816, Open GL 4.6, DirectX 12,  memory bandwidth 224 GB/s Manual: Link
Sound: Realtek ALC3205-CG Dimensions/weight: 16.89 x 44.45 x 38.61 cm
from 10.5 kg
Network: Intel I219-LM PCIe 10/100/1.000 Gigabit Ethernet
Power adapter: 775 Watt 90% efficient, active PFC Specials: HP HW Maintenance Onsite Support till 14.12.2027
Expansion slots
total:		 1 x PCIe 5 x16
2 x PCIe 4 x16
2 x PCIe 4 x4
Rear bulkhead access can be achieved through all slots but 2 PCIe 4 x8 are internal access only for M.2
Item delivered: HP Z4 G5 Workstation Intel Xeon W3-2435, 3.10 GHz, 64 GB RAM,  512 GB M.2 SSD, Nvidia RTX 4000 ADA (20GB), Windows 11 Pro OEM



Buy a refresh HP Z4 G5 professional workstation for your CAD Application

Professional users are extremely reliant on perfectly performing computers with the according hardware capacities. Engineers using CAD or numeric simulation tools, architects designing complex structures or graphic designers creating and editing pictures or videos: Strong and reliable components save time, nerves, money and give the right impression with current or potential customers. Unfortunately, this hardware can be unreasonably expensive. We from Uli Ludwig Computer have the solution by offering you refurbished hardware in very good condition to reasonable prices.

Just like the here offered HP Z4 G5, which is equipped with high-end components. Heart of the system is the Intel Xeon W3-2435 processor with 8 cores, 16 threads, 22.5 MB SmartCache and a processor base frequency of 3.10 GHz. The processor is flanked by 64 GB of DDR5 RAM memory that can be increased to up to 512 GB on eight slots if necessary. In order for graphical applications to run smoothly, the Z4 G5 workstation has installed an Nvidia RTX 4000 ADA with 20 GB memory. Also built in is a  512 GB M.2 SSD for extremely fast reaction. All these components are placed into a space saving minitower.

data sheet

Datasheet (DE)

PDF Datasheet (DE)

Datasheet (EN)

PDF Datasheet (EN)
Characteristics
Product safety information
Manufacturer information:
HP Deutschland GmbH
Herrenberger Straße 140
Baden-Württemberg
Böblingen, Deutschland, 71034
firmen.kunden@hp.com
https://www.hp.com/de
Item information Value
Application: CAD Workstation
Operating System: Windows 10 ProWindows 11 Pro
Hard Disk Type: M.2 NVMe SSD
Manufacturer: HP
ISV Certification: AutoCADFusion 360InventorHoudiniSolidWorksRevitAdobe CCSolid EdgeANSYSDaVinci ResolveAVIDBlenderBentleyV-RayCATIA 3DEXPERIENCELumionArchiCADRedshiftCreoSiemens NX
Memory Error Correction: ECC
Memory Type: DDR5
M.2 NVMe SSD Capacity: 2
Condition: new
CPU Type: Intel Xeon 8-Core
Memory Capacity: 64 GB
CPU Model: Intel Xeon W3-2435
GPU: NVIDIA Quadro RTX 4000 ADA (20GB)
